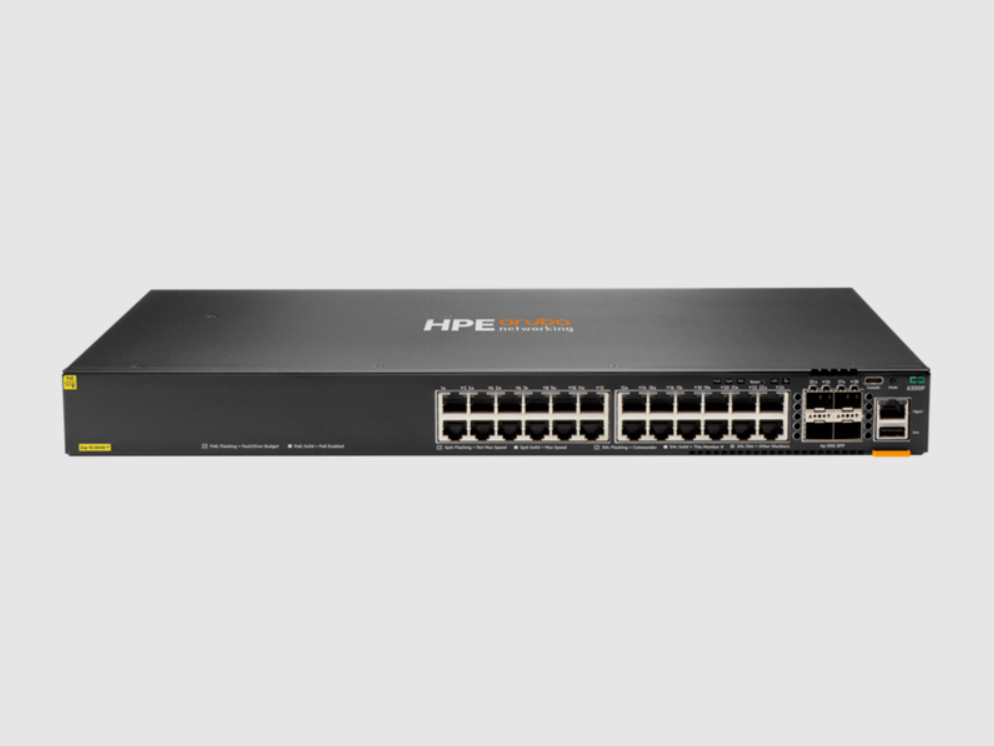

HPE Aruba Networking CX 6300F 24‑port 1GbE Class 4 PoE and 4‑port SFP56 Switch（JL666A）

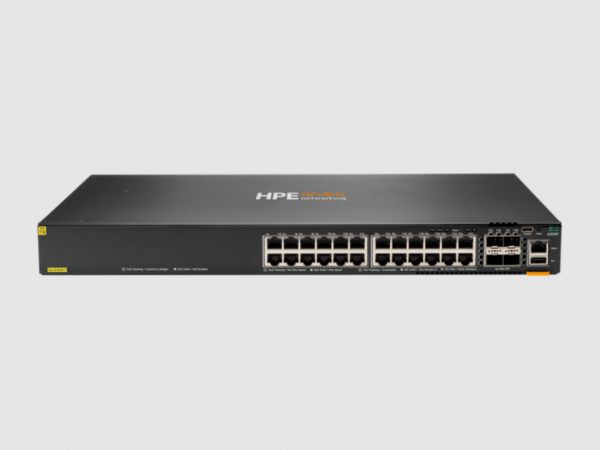

HPE Aruba Networking CX 6300F 24‑port 1GbE Class 4 PoE and 4‑port SFP56 Switch（JL666A） - Image 2

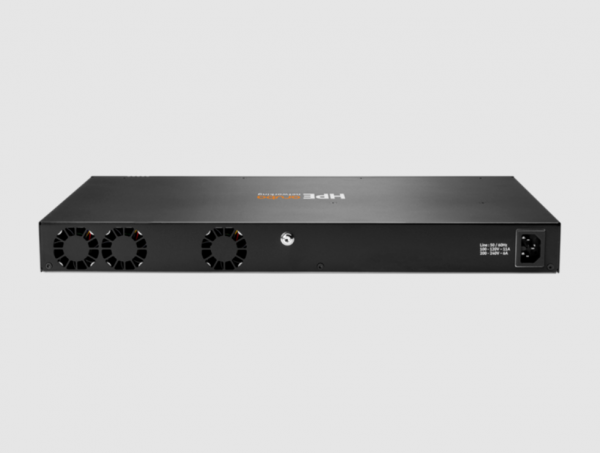

HPE Aruba Networking CX 6300F 24‑port 1GbE Class 4 PoE and 4‑port SFP56 Switch（JL666A） - Image 3

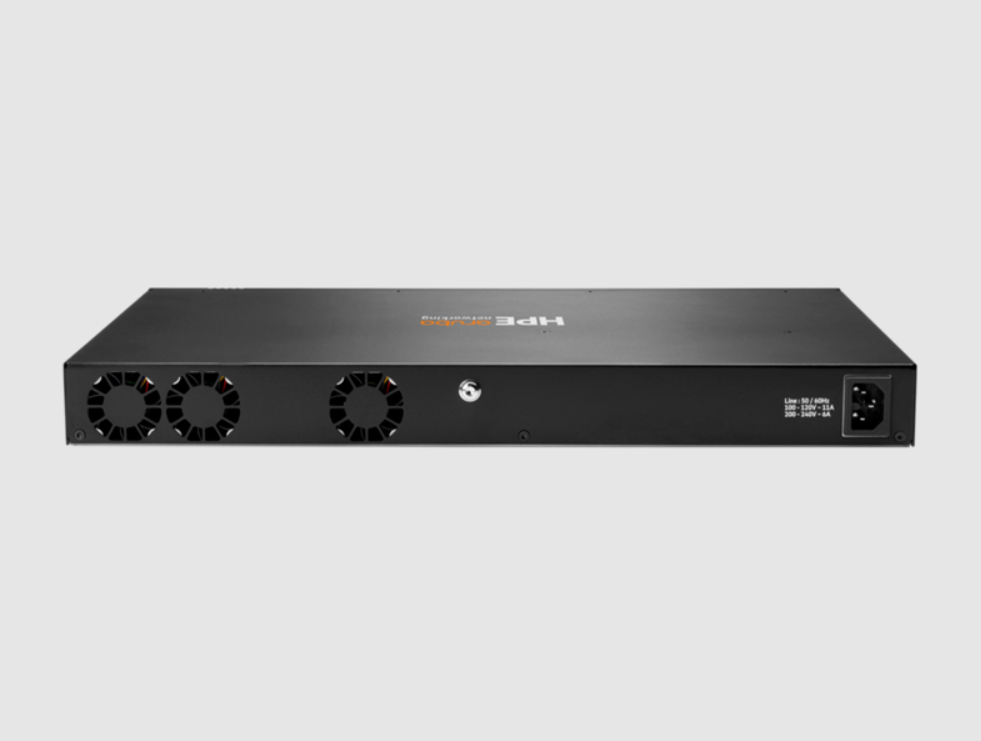

HPE Aruba Networking CX 6300F 24‑port 1GbE Class 4 PoE and 4‑port SFP56 Switch（JL666A）

  • The HPE Aruba Networking CX 6300 Switch Series uses a fully distributed architecture with Gen7 ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption. All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications.
  • HPE Aruba Networking Virtual Switching Framework (VSF) allows you to quickly grow your network using high performance front plane stacking. Four built-in uplinks support speeds of up to 10, 25, 50, and 100 GbE for a total of 200 to 400 Gbps of stacking throughput per switch.
  • Deploy wireless access points and IoT devices with CX 6300 models that offer high density HPE Smart Rate Multi-Gigabit Ethernet with Class 4 (30W), Class 6 (60W), and Class 8 (90W) PoE on each port (720W, 1440W, and 2880W max PoE budget options).
  • CX 6300L stackable, high-performance Layer 2-only switches with static routing available for customers needing scalability, high-capacity, and cost-effective connectivity in the access layer.
  • The S0E91A switch model supports QSFP28 uplink speeds of 40 GbE and 100 GbE for up to 400 Gbps of stacking throughput.
Category: Brand:

HPE Aruba Networking CX 6300F 24‑port 1GbE Class 4 PoE and 4‑port SFP56 Switch

Power consumptionIdle: 52W
100% Traffic Rate: 67W

Input voltageFixed PSU: 100V‑120V/200V‑240V

Ports24-port 10/100/1000 BaseT ports supporting up to 30W per port;

4x 1G/10G/25G/50G* SFP ports;

Supports PoE Standards IEEE 802.3af, 802.3at;

1x USB‑C Console Port;
1x OOBM port;
1x USB Type A Host port

Notes:
*50G capability is for use with 50G DACs for both interconnect and VSF stacking. 50G transceivers and DACs are not supported on S0E91A and S0X44A switch models, which requires QSFP to SFP56 DAC cable for VSF stacking with other CX 6300F and CX 6300M switch models only. VSF stacking not supported on 1G ports.

Latency1Gbps: 2.28μSec,
10Gbps: 1.46μSec,
25Gbps: 1.90μSec,
50Gbps: 3.49μSec

Switching capacity448 Gbps

Stacking capabilitiesUp to 10 switches per stack

NOTE: CX 6300L switches only stack with other CX 6300L switches

Throughput334 Mpps

Memory and processorQuad Core Arm Cortex™ A72 @ 1.8GHz
8 GB DDR4, 32 GB eMMC

8 MB, 16 MB, or 32 MB Shared Packet Buffer Memory, depending on model and configuration

PoE capabilityMax PoE Power: 370W

Management featuresHPE Aruba Networking Central Network Management
HPE Aruba Networking Management Software (AirWave)
HPE Aruba Networking Switch Multi-Edit Software
Command-line interface
SNMP v2c/v3
RMON

WarrantyLimited lifetime warranty. See the warranty duration.

Detailed product descriptionCX 6300F 24-port 1 GbE Class 4 PoE and 4-port SFP56 switch
Includes Non-Pluggable, Internal PSU behind Sheetmetal Chassis Frame
Includes Non-Pluggable, Internal Fans behind Sheetmetal Chassis Frame
Min=0 \ Max = 4 SFP/SFP+/SFP28/SFP56 1/10/25/50 G Transceiver
1U - Height

Weight4.95 kg (10.91 lbs)

Dimensions4.4 x 44.2 x 32.7 cm (1.73 x 17.4 x 12.9 in)
