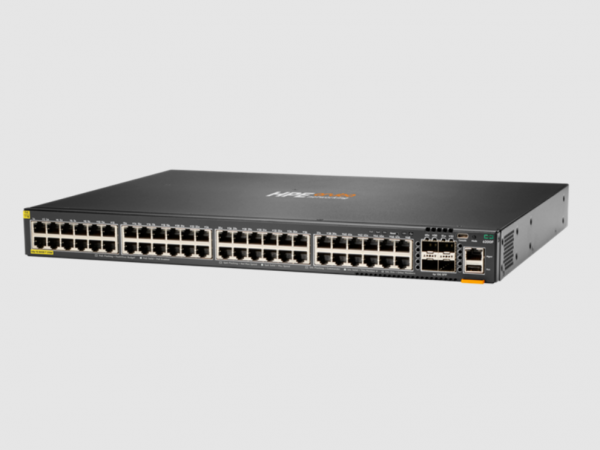

HPE Aruba Networking CX 6200F 48G Class4 PoE 4SFP+ 370W Switch（JL727A）
HPE Aruba Networking CX 6200F 48G Class4 PoE 4SFP+ 370W Switch（JL727A） - Image 2
HPE Aruba Networking CX 6200F 48G Class4 PoE 4SFP+ 370W Switch（JL727A） - Image 3

HPE Aruba Networking CX 6200F 48G Class4 PoE 4SFP+ 370W Switch（JL727A）

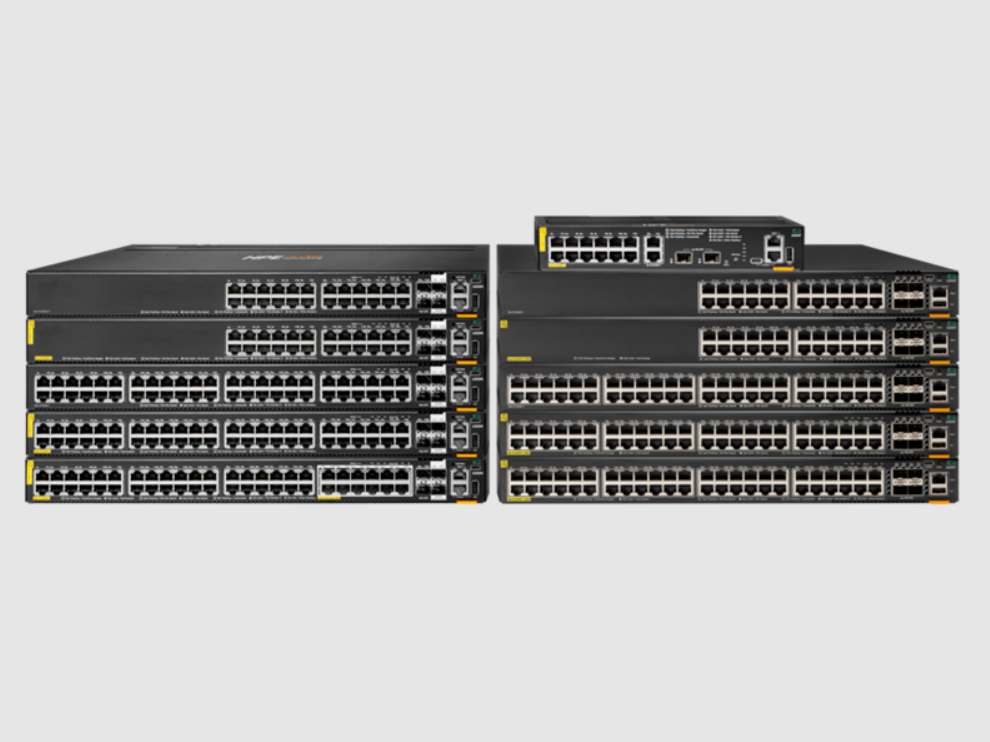

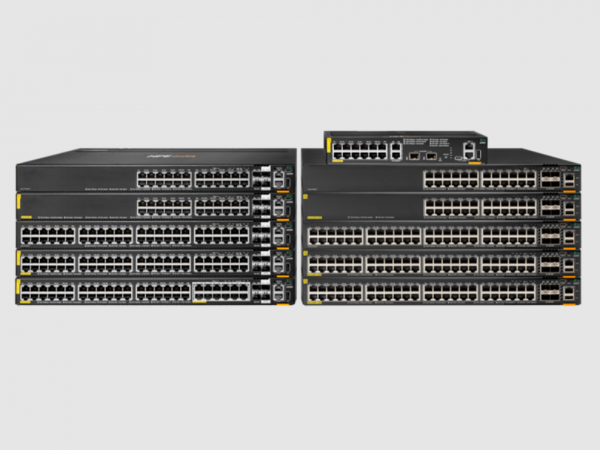

  • The HPE Aruba Networking CX 6200 Switch Series provides Layer 3 access switching with high performance, security, and ease of use for enterprise edge, SMB, and branch office networks.
  • A fully distributed architecture with Gen7 ASICs deliver very low latency, increased packet buffering, and adaptive power consumption. Switching and routing are wire-speed to meet the demands of bandwidth-intensive workloads.
  • HPE Aruba Networking Virtual Switching Framework (VSF) allows you to quickly grow your network using high performance front-plane stacking. Create 8 member stacks using built-in SFP+ ports with flexibility to create stacks that span longer distances using long-range transceivers.
  • Deploy wireless access points and IoT devices with HPE Aruba Networking CX 6200 models that support up to 1440W IEEE 802.3at Class 6 Power over Ethernet for up to 60W per port.
  • Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.
Category: Brand:

HPE Aruba Networking CX 6200F 48G Class4 PoE 4SFP+ 370W Switch

Differentiator48x ports 10/100/1000BASE-T Class 4 PoE Ports, supporting up to 30W per port
4x 1/10G SFP ports
Supports PoE Standards IEEE 802.3af, 802.3at
1x USB-C Console Port
1x OOBM
1x USB Type-A Host port
1x Bluetooth Adapter to be used with CX Mobile app
Fixed power supply Up to 370W of Class 4 PoE power
Fixed fans

Power consumption76W at 230 VAC

Input voltage100V-120V/200V-240V

Ports48x 10/100/1000BASE-T Class 4 PoE ports
4x 1/10G SFP ports
Supports PoE Standards IEEE 802.3af, 802.3at
1x USB-C Console Port
1x OOBM
1x USB Type-A Host port
1x Bluetooth Adapter to be used withCX mobile app

Latency1 Gbps: 2.28 μSec
10 Gbps: 1.46 μSec

Routing/switching capacity176 Gbps

Stacking capabilities8 members

ThroughputUp to 130.9 Mpps

Memory and processorCPU: Quad Core ARM Cortex™ A72 at 1.8 GHz
Memory and Flash: 8 GB DDR4 16 GB eMMC

Power supply nameFixed power supply (500W)
Up to 370W of Class 4 PoE Power

PoE capability370W

WarrantyLimited lifetime warranty. See the warranty duration.

Detailed product descriptionThe HPE Aruba Networking CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks.

Weight5.05 kg (11.13 lbs)

Dimensions4.39 x 44.2 cm x 32.7 cm (1.73 x 17.4 x 12.9 in)
