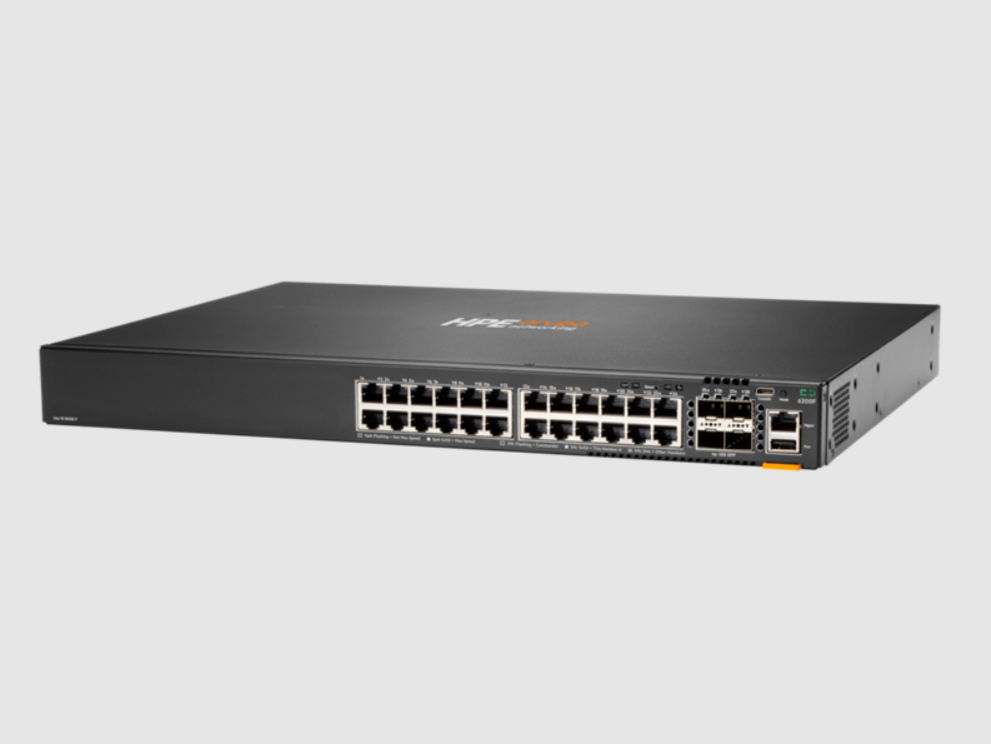

HPE Aruba Networking CX 6200F 24G 4SFP+ Switch （JL724A）

  • The HPE Aruba Networking CX 6200 Switch Series provides Layer 3 access switching with high performance, security, and ease of use for enterprise edge, SMB, and branch office networks.
  • A fully distributed architecture with Gen7 ASICs deliver very low latency, increased packet buffering, and adaptive power consumption. Switching and routing are wire-speed to meet the demands of bandwidth-intensive workloads.
  • HPE Aruba Networking Virtual Switching Framework (VSF) allows you to quickly grow your network using high performance front-plane stacking. Create 8 member stacks using built-in SFP+ ports with flexibility to create stacks that span longer distances using long-range transceivers.
  • Deploy wireless access points and IoT devices with HPE Aruba Networking CX 6200 models that support up to 1440W IEEE 802.3at Class 6 Power over Ethernet for up to 60W per port.
  • Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.
Category: Brand:

HPE Aruba Networking CX 6200F 24G 4SFP+ Switch

Differentiator24x ports 10/100/1000BASE-T Ports
4x 1/10G SFP ports
1x USB-C Console Port
1x OOBM
1x USB Type-A Host port
1x Bluetooth Adapter to be used with CX Mobile app
Fixed power supply
Fixed fans

Power consumption59W at 230 VAC

Input voltage100V-120V/200V-240V

Ports24x ports 10/100/1000BASE-T ports
4x 1/10G SFP ports
1x USB-C Console Port
1x OOBM
1x USB Type-A Host port
1x Bluetooth Adapter to be used with CX mobile app

Latency1 Gbps: 2.28 μSec
10 Gbps: 1.46 μSec

Routing/switching capacity128 Gbps

Stacking capabilities8 members

ThroughputUp to 95.2 Mpps

Memory and processorCPU: Quad Core ARM Cortex™ A72 at 1.8 GHz
Memory and Flash: 8 GB DDR4 16 GB eMMC

Power supply nameFixed power supply (200W)

WarrantyLimited lifetime warranty. See the warranty duration.

Detailed product descriptionThe HPE Aruba Networking CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks.

Weight4.36 kg (9.61 lbs)

Dimensions4.39 x 44.2 cm x 32.7 cm (1.73 x 17.4 x 12.9 in)
