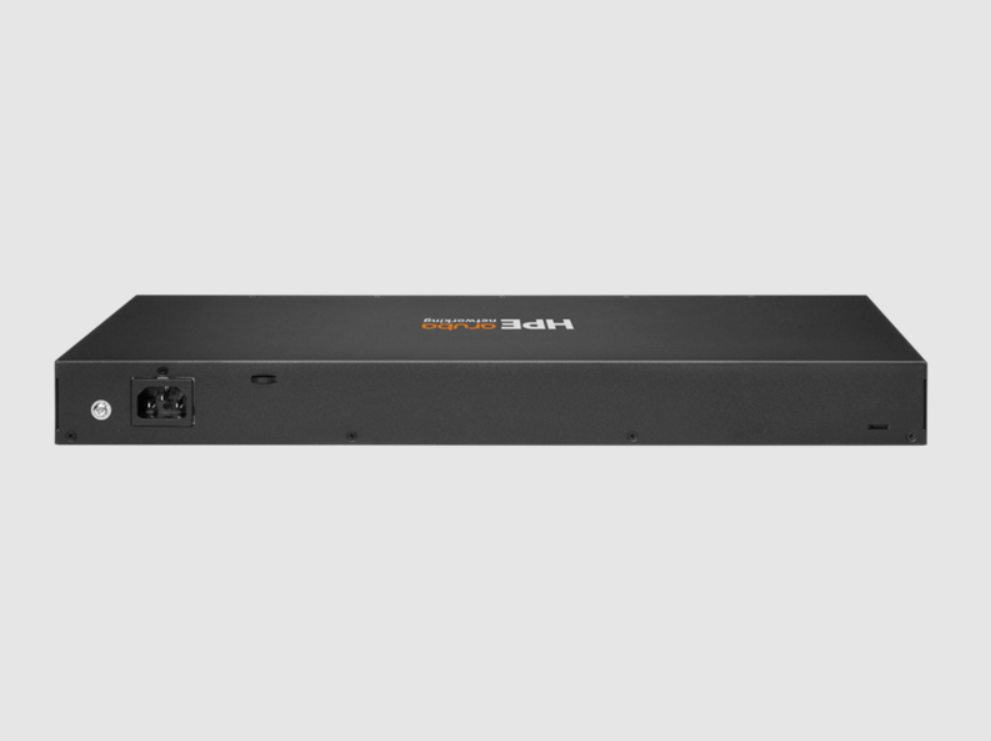

HPE Aruba Networking CX 6100 24G 4SFP+ Switch （JL678A）
HPE Aruba Networking CX 6100 24G 4SFP+ Switch （JL678A） - Image 2
HPE Aruba Networking CX 6100 24G 4SFP+ Switch （JL678A） - Image 3

HPE Aruba Networking CX 6100 24G 4SFP+ Switch （JL678A）

  • The HPE Aruba Networking CX 6100 Switch Series offers gigabit connectivity with high speed uplinks and optional PoE to provide entry level, reliable, and convenient wired access connectivity for enterprise branch office and SMB networks.
  • Delivers a simple, consistent operator experience with the HPE Aruba Networking CX Switch Operating System (AOS-CX) used across HPE Aruba Networking CX switching platforms.
  • Fully-managed enterprise class switches deliver Layer 2 capabilities with support for static routing, ACLs, robust QoS, traffic prioritization, sFlow, and IPv6.
  • Right size deployment with choice of 12, 24, and 48 port 1U models with convenient built-in 1/10 GbE uplinks and up to 740W of Class 4 PoE.
  • Simplifies ownership with no switch software licensing or subscriptions required.

    Performance and Power

    • The HPE Aruba Networking CX 6100 Switch Series is designed with a dedicated ASIC that delivers very low latency, increased packet buffering, and adaptive power consumption.
    • Deploy wireless access points and IoT devices using HPE Aruba Networking CX 6100 switch models for up to 740W IEEE 802.3at Class 4 Power over Ethernet with up to 30W per port.
    • Four built-in wire speed 1/10 GbE uplinks eliminate bottlenecks at the access layer where users and devices connect.
Category: Brand:

HPE Aruba Networking CX 6100 24G 4SFP+ Switch

Differentiator24x ports 10/100/1000BASE-T Ports
4x 1G/10G SFP ports
1x USB-C Console Port
1x USB Type-A Host port
Fixed power supply
Fixed fans

Power consumptionMax Power (w/o PoE): 33W

Input voltage100-127 VAC / 200-240 VAC

Ports24x ports 10/100/1000BASE-T ports
4x 1G/10G SFP ports

Latency1 Gbps: 1.5 μSec , 10 Gbps: 1.8 μSec

Switching capacity128 Gbps

Throughput95.2 Mpps

Memory and processorDual Core ARM Cortex A9 @ 1016 Mhz
4 GB DDR3, maximum, depending on model
16 GB eMMC

PoE capability370W, maximum, depending on model

WarrantyLimited lifetime warranty. See the warranty duration.

Detailed product descriptionThe HPE Aruba Networking CX 6100 Switch Series is modern family of entry level access switches ideal for enterprise branch offices and SMB networks.

Weight2.6 kg (5.78 lbs)

Dimensions4.4 x 44.2 x 20.1 cm (1.73 x 17.4 x 7.92 in)
