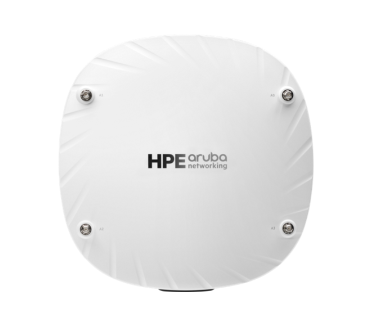

HPE Aruba Networking AP‑534 (RW) JZ331A Dual Radio 4x4 802.11ax External Antennas Unified Campus AP
HPE Aruba Networking AP‑534 (RW) JZ331A Dual Radio 4x4 802.11ax External Antennas Unified Campus AP - Image 2

HPE Aruba Networking AP‑534 (RW) JZ331A Dual Radio 4x4 802.11ax External Antennas Unified Campus AP

The 530 series indoor APs deliver the speed and reliability needed for any enterprise experiencing growing numbers of IoT and mobility requirements.

  • Wi-Fi 6 access points (APs) provide up to 2.97 Gbps combined aggregate data rate.
  • Dual radio AP supporting 5 GHz and 2.4 GHz bands (4x4 MIMO).
  • Protects network security with stronger encryption and authentication, secure credentials/keys storage, and user and IoT access policy enforcement firewalls (PEF).
  • IoT-ready with support for1 Bluetooth 5 and Zigbee and two 5 Gbps ports for fast wired connectivity.
  • Deploy models with internal antennas or connectorized models that support external antennas to meet range of environments.
Category: Brand:

CertificationsUL2043 plenum rating
Wi-Fi Alliance:
-Wi-Fi CERTIFIED a, b, g, n, ac
-Wi-Fi CERTIFIED 6 (ax)
-WPA, WPA2 and WPA3
-Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE)
-WMM, WMM-PS, W-Fi Agile Multiband
-Passpoint (release 2)
-Wi-Fi CERTIFIED Location™
Bluetooth SIG

Input voltageIEEE 802.3bt (class 5) or 802.3at PoE, or direct DC power (via optional power supply)

Wi-Fi antennaFour RP-SMA connectors for external dual-band antennas.

Ports(2) HPE Smart Rate RJ-45 port (maximum negotiated speed 5 Gbps)

Power consumptionPOE powered (802.3bt or dual 802.3at): 30W POE powered (802.3at, IPM enabled): 25W DC powered: 29W; maximum (worst case)

Radio coverageDual-radio 4x4 MIMO IEEE 802.11ax AP with up-and downlink OFDMA and Multi-User MIMO (MU-MIMO). Maximum data rates of 2.4 Gbps in the 5 GHz band and 1,150 Mbps in the 2.4 GHz band (for an aggregate peak data rate of 3.55 Gbps).

WarrantyLimited lifetime warranty

Detailed product descriptionThe 530 series indoor APs deliver the speed and reliability needed for any enterprise experiencing growing numbers of IoT and mobility requirements.

DifferentiatorAvailable everywhere except US, Israel, Japan and Egypt

Weight1.0 kg (2.2 lb)

Dimensions57 x 240 x 240 mm (AP-534), 80mm x 270 x 270 mm (AP-535) (2.2 x 9.4 x 9.4 in (AP-534), 2.8 x 9.1 x 8.7 in (AP-535))
