HPE Aruba Networking 9000 Series Branch Gateways

High Performance and Reliability
For distributed enterprises with increasing performance and bandwidth needs, the HPE Aruba Networking 9000 Series Branch
Gateways is designed with scale and flexibility and equipped with plenty of horsepower at a competitive price-point.
This series provides connectivity for up to 2,048 users or client devices at up to 6 Gbps of firewall throughput. These capabilities
are up to 80 times the client density and 10 times the maximum throughput of typical SD-WAN appliances.
For enhanced resiliency and high availability, multiple HPE Aruba Networking 9000 series can be clustered together at each
branch.
Flexible Consumption
The gateway supports WLAN and SD-WAN deployments with HPE Aruba Networking Central subscription licenses. HPE
GreenLake for Networking can help with the transition to a subscription-based network consumption model.
Iot and Integration Ready
The HPE Aruba Networking 9000 Series Branch Gateways includes flexible connectivity options, with up to 12 Ethernet ports (6x
PoE+) that can be used as access/WAN uplinks, a USB 3.0 port for cellular connectivity, and an IoT radio that supports Bluetooth 5,
Zigbee, and Near Field Communication (NFC) wireless protocols.
The gateway also uses integrated device profiling to improve client visibility and works with HPE Aruba Networking Central, HPE
Aruba Networking ClearPass Policy Manager or HPE Aruba Networking ClearPass Device Insight to provide advanced user, device
and IoT policy management and insights.
SD-WAN Deployment
For organizations that are now managing multiple WAN connections, HPE Aruba Networking 9000 Series Branch Gateways can be
connected to the HPE Aruba Networking SD-WAN fabric right out of the box. SD-WAN is a rich WAN management solution that is
used to simplify management of traffic entering and exiting branch sites. Role-based intrusion detection and prevention (IDS/IPS),
dynamic segmentation, and stateful firewall deliver integrated security requirements. Please refer to the SD-WAN datasheet for
more information.
Branch and Campus Deployment
HPE Aruba Networking 9000 Series Branch Gateways can also be re-purposed as mobility controllers starting with HPE Aruba
Networking AOS 8.5 software to provide WLAN and LAN services such as dynamic segmentation, stateful firewall and live
upgrades. In this mode, the HPE Aruba Networking 9000 series cannot simultaneously be used for SD-WAN.
Integrated LTE
The 9004-has an integrated LTE module that can use high speed LTE as a dedicated or redundant WAN uplink. The LTE
operations are managed via HPE Aruba Networking Central.
Dynamic segmentation and policy enforcement
Protecting and delivering network access across enterprise branch and campus sites is critical and complex. To improve security
and simplify management, Dynamic Segmentation eliminates the time consuming and error-prone task of managing complex and
static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic secure and separated. IT can centrally
configure with automatic enforcement of role-based policies that define proper access privileges for employees, guests, contractors,
and other user groups– no matter where users connect on wired and WLANs. Additionally, the HPE Aruba Networking 9000 Series
relies on a built-in Layer 4-7 stateful firewall known as the policy enforcement firewall (PEF). It streamlines policy management by
working across WLAN, LAN, and WAN and policies are automatically enforced to simplify SSID, VLAN and policy management.
Microsoft Features
HPE Aruba Networking’s integration with Microsoft enables unique application intelligence that detects Microsoft 365 (Office
365), Teams, and Skype for Business traffic and then prioritizes them over less critical applications. Through management
interfaces on HPE Aruba Networking Central, HPE Aruba Networking AOS, and HPE Aruba Networking Management Software
(AirWave), IT can visualize call quality metrics such as MOS, latency, jitter, and packet loss for additional insights.

Standard Features
Page 4
Enhanced Capabilities
Policy Enforcement Firewall
The HPE Aruba Networking 9000 Series Branch Gateways includes a Layer 4-7 stateful firewall with PEF to deliver a consistent
user, device, and application awareness across WLAN, LAN, and WAN. When deployed alongside HPE Aruba Networking ClearPass
Policy Manager, policies are automatically enforced to simplify SSID, VLAN and policy management.
Threat Defense with IDS/IPS
To improve security against a growing attack surface, gateways deployed in SD-WAN mode add role and identity-based intrusion
detection and prevention capabilities (IDS/IPS) on top of existing security features. The threat defense function is further
augmented with one-click integration with third-party cloud-based security solutions.
Application Visibility Control
Deep Packet Inspection (DPI) technology, which is a component of PEF, consistently evaluates and optimizes performance and
usage policies for over 3,800 applications. This ensures the highest possible Quality of Service (QoS) – even for encrypted traffic.
High Availability
This series can be deployed with N+1 or NxN redundancy, and can also join a controller cluster when deployed as a mobility
controller managed by HPE Aruba Networking Mobility Conductor. This increases performance and scale for enhanced resiliency.
Simple To Use, Mobile Provisioning
Allows on-site personnel to use a mobile app to onboard gateways. A central IT team can verify device location, licenses, and status
with no additional steps required.
Available for iOS and Android.
Unified Communications and Collaboration (UCC)
Visualize and troubleshoot networks based on call quality metrics such as MOS, latency jitter and packet loss. Supported
applications include: Teams, Wi-Fi Calling, FaceTime, SIP, Jabber, Spark and more.
Streaming API
Enables you to subscribe to a select set of topics, instead of polling the NB API to get continuous state and stats messages. Also
enables you to write value-added applications based on the aggregated context.
HPE Aruba Networking Central NetConductor
Enables the creation of EVPN/VXLAN overlays with an intuitive, graphical user interface to streamline the adoption of role-based
access policies and Dynamic Segmentation at global scale with distributed enforcement.
AIOps for IT Efficiency
AI-powered HPE Aruba Networking Central insights for improved troubleshooting and optimization with AI Search, AI Insights, and
AI Assist.

Configuration Information
Page 5
BTO Models
Remarks Description SKU

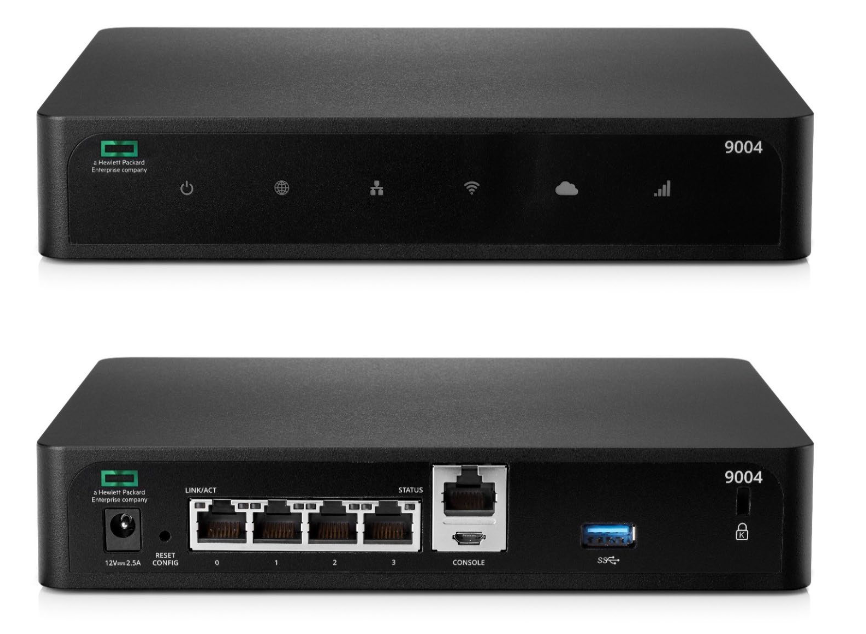

HPE Aruba Networking 9004 Gateway
HPE Aruba Networking 9004 (US) 4-Port GbE RJ45 2K Clients - 32 APs Gateway R1B20A
HPE Aruba Networking 9004 (RW) 4-Port GbE RJ45 2K Clients - 32 APs Gateway R1B21A
HPE Aruba Networking 9004 (JP) 4-Port GbE RJ45 2K Clients - 32 APs Gateway R1B22A
HPE Aruba Networking 9004 (IL) 4-Port GbE RJ45 2K Clients - 32 APs Gateway R1B23A
HPE Aruba Networking 9004 (EG) 4-Port GbE RJ45 2K Clients - 32 APs Gateway R1B24A
HPE Aruba Networking 9004 TAA Gateway
HPE Aruba Networking 9004 (US) TAA 4-Port 10/100/1000BASE-T Branch 2K Clients - 32 APs
Gateway
R1B25A
HPE Aruba Networking 9004 (RW) TAA 4-Port 10/100/1000BASE-T Branch 2K Clients - 32 APs
Gateway
R1B26A
HPE Aruba Networking 9004 (JP) TAA 4-Port 10/100/1000BASE-T Branch 2K Clients - 32 APs
Gateway
R1B27A
HPE Aruba Networking 9004 (IL) TAA 4-Port 10/100/1000BASE-T Branch 2K Clients - 32 APs
Gateway
R1B28A
HPE Aruba Networking 9004 (EG) TAA 4-Port 10/100/1000BASE-T Branch 2K Clients - 32 APs
Gateway
R1B29A
HPE Aruba Networking 9004 LTE Gateway
HPE Aruba Networking 9004 (US) 4-Port 10/100/1000BASE-T LTE 2K Clients - 32 APs Branch
Gateway
R3V91A
HPE Aruba Networking 9004 (RW) 4-Port 10/100/1000BASE-T LTE 2K Clients - 32 APs Branch
Gateway
R3V90A
HPE Aruba Networking 9004 (JP) 4-Port 10/100/1000BASE-T LTE 2K Clients - 32 APs Branch
Gateway
R3V89A
HPE Aruba Networking 9004 (IL) 4-Port 10/100/1000BASE-T LTE 2K Clients - 32 APs Branch
Gateway
R3V88A
HPE Aruba Networking 9004 (EG) 4-Port 10/100/1000BASE-T LTE 2K Clients - 32 APs Branch
Gateway
R3V87A
HPE Aruba Networking 9004 LTE TAA Gateway
HPE Aruba Networking 9004 (US) 4-Port 10/100/1000BASE-T 2K Clients with LTE TAA Branch
Gateway R3V96A
HPE Aruba Networking 9004 (RW) 4-Port 10/100/1000BASE-T 2K Clients with LTE TAA Branch
Gateway R3V95A
HPE Aruba Networking 9004 (JP) 4-Port 10/100/1000BASE-T 2K Clients with LTE TAA Branch
Gateway R3V94A
HPE Aruba Networking 9004 (IL) 4-Port 10/100/1000BASE-T 2K Clients with LTE TAA Branch
Gateway R3V93A
HPE Aruba Networking 9004 (EG) 4-Port 10/100/1000BASE-T 2K Clients with LTE TAA Branch
Gateway R3V92A
HPE Aruba Networking 9012 Gateway
HPE Aruba Networking 9012 (US) 12xGbE 6xPoE+ Branch 2K Clients - 32 APs Gateway R1B31A
HPE Aruba Networking 9012 (RW) 12xGbE 6xPoE+ Branch 2K Clients - 32 APs Gateway R1B32A
HPE Aruba Networking 9012 (JP) 12xGbE 6xPoE+ Branch 2K Clients - 32 APs Gateway R1B33A
HPE Aruba Networking 9012 (IL) 12xGbE 6xPoE+ Branch 2K Clients - 32 APs Gateway R1B34A
HPE Aruba Networking 9012 (EG) 12xGbE 6xPoE+ Branch 2K Clients - 32 APs Gateway R1B35A
HPE Aruba Networking 9012 TAA Gateway
HPE Aruba Networking 9012 (US) TAA 12xGbE 6xPoE+ Branch 2K Clients - 32 APs Gateway R1B36A
HPE Aruba Networking 9012 (RW) TAA 12xGbE 6xPoE+ Branch 2K Clients - 32 APs Gateway R1B37A

Configuration Information
Page 6
HPE Aruba Networking 9012 (JP) TAA 12xGbE 6xPoE+ Branch 2K Clients - 32 APs Gateway R1B38A
HPE Aruba Networking 9012 (IL) TAA 12xGbE 6xPoE+ Branch 2K Clients - 32 APs Gateway R1B39A
HPE Aruba Networking 9012 (EG) TAA 12xGbE 6xPoE+ Branch 2K Clients - 32 APs Gateway R1B40A
Notes: Each HPE Aruba Networking 9000 model includes a JX990A power adapter
Bring in (Min 1 // Max 1) Localized power cord based on the HPE Aruba Networking Localization
Menu
OCA Only Model Selection Form –
HPE Aruba Networking > Gateways and Controllers > Mobility Controllers > Branch / Standalone >
HPE Aruba Networking 9000 Series Mobility Controller
HPE Aruba Networking > Gateways and Controllers > SD-WAN Gateways > Branch / Standalone >
HPE Aruba Networking 9000 Series Branch Gateway
Power Options
Remarks Description SKU
Power Cord For Power Supply
HPE Aruba Networking PC-AC-ARG 250V/10A 1.8m C13 to IRAM 2073 (AR) AC Power Cord JW113A
HPE Aruba Networking PC-AC-AUS 250V/10A 1.8m C13 to AS3112 (AU) AC Power Cord JW114A
HPE Aruba Networking PC-AC-BR 250V/10A 1.8m C13 to NBR 14136 (BR) AC Power Cord JW115A
HPE Aruba Networking PC-AC-CHN 250V/10A 1.8m C13 to GB2099 (CH) AC Power Cord JW116A
HPE Aruba Networking PC-AC-DEN 250V/10A 1.8m C13 to AFSNIT 107-2-D1 (DK) AC Power Cord JW117A
HPE Aruba Networking PC-AC-EC 250V/10A 1.8m C13 to CEE7/7 (EU) AC Power Cord JW118A
HPE Aruba Networking PC-AC-IN 250V/6A 1.8m C13 to IS1293 (IN) AC Power Cord JW119A
HPE Aruba Networking PC-AC-IL 250V/10A 1.8m C13 to SI32 (IL) AC Power Cord JW120A
HPE Aruba Networking PC-AC-IT 250V/10A 1.8m C13 to CEI 23-50 (IT) AC Power Cord JW121A
HPE Aruba Networking PC-AC-JPN 125V/12A 1.8m C13 to JISC 8303 (JP) AC Power Cord JW122A
HPE Aruba Networking PC-AC-KOR 250V/7A 1.8m C13 to KSC 8305 (KR) AC Power Cord JW123A
HPE Aruba Networking PC-AC-NA 125V/10A 1.8m C13 to NEMA 5-15P (NA) AC Power Cord JW124A
Accessories
Remarks Description SKU
Rack Mount Kit
1, 2 HPE Aruba Networking 9004-MNT-19 9004 Series 19-inch Rack Mount Kit R1B30A
2, 4 HPE Aruba Networking 9004-LTE-MNT-19 9004-LTE Series 19-inch Rack Mount Kit R3W17A
Antenna Extender Kit
4, 5 HPE Aruba Networking 90xx-LTE Indoor Antennas Extender Kit 20 ft with Indoor LTE and GPS
Antennas
R4Y91A
4, 5 HPE Aruba Networking 90xx-LTE Indoor Antennas Extender Kit 40 ft with Indoor LTE and GPS
Antennas
R4Y92A
4, 5 HPE Aruba Networking 90xx-LTE Outdoor Extender Kit 35 ft with Outdoor LTE and GPS Antennas R4Y93A
Configuration Rules
1 This is only available on the HPE Aruba Networking 9004/9004 TAA Branch Gateway
2 Min 0 / Max 1
4 This Rack Mount Kit is only available on the HPE Aruba Networking 9004 LTE/9004 LTE TAA
Gateway
5 Min 0 // Max 2
Notes: HPE Aruba Networking 9004-MNT-19 can hold up to qty 2 Gateways
HPE Aruba Networking 9004-LTE-MNT-19 can hold up to qty 1 Gateways

Configuration Information
Page 7
Spares
Rule # Description SKU
Std (Min 0 // max 99) User Selection (min 0 // max 99)
1, 2 HPE Aruba Networking AP-AC2-12B 12V/48W AC/DC Desktop Style Power Adapter with 2.1/5.5mm
Connector
R3K00A
HPE Aruba Networking 90xx-LTE Spare Indoor Antennas Replacement and GPS Antennas R4Y94A
HPE Aruba Networking 90xx-LTE Spare SIM Tray Kit with Ejector Pin R4Y95A
3 HPE Aruba Networking 9012-MNT-19 9012 Gateway Spare 19-inch Rack Mount Kit R4X13A
HPE Aruba Networking 90xx-LTE Spare Outdoor Replacement and GPS Antennas R6M37A
Configuration Rules
1 Bring in (Min 1 // Max 1) Localized power cord based on the HPE Aruba Networking Localization
Menu
2 This is only available on the 9004/9004 TAA Branch Gateway series
3 This Rack Mount Kit is only available on the 9012/9012 TAA Series Branch Gateway
Notes: Power Adapter is included with HPE Aruba Networking 9004/9004 TAA Branch Gateway series.
Internal Power Supply Unit is included with HPE Aruba Networking 9012/9012 TAA Branch
Gateway series.
Localized power cord is systematically added as a line item on the bill of materials.
Software
Gateway License
Std (Min 0 // max 1) User Selection (min 1 // max 1)
Rule # Description SKU
1 HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation 1-year Subscription E-STU JZ118AAE
2 HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation 3-year Subscription E-STU JZ119AAE
3 HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation 5-year Subscription E-STU JZ120AAE
4 HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation 7-year Subscription E-STU R0G52AAE
5 HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation 10-year Subscription E-STU R0G53AAE
1 HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation Base Capacity 1-year
Subscription E-STU
JZ124AAE
2 HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation Base Capacity 3-year
Subscription E-STU
JZ125AAE
3 HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation Base Capacity 5-year
Subscription E-STU
JZ126AAE
4 HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation Base Capacity 7-year
Subscription E-STU
R0G56AAE
5 HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation Base Capacity 10-year
Subscription E-STU
R0G57AAE
1 HPE Aruba Networking 90/70xx SD-Branch Gateway Advanced 1-year Subscription E-STU JZ121AAE
2 HPE Aruba Networking 90/70xx SD-Branch Gateway Advanced 3-year Subscription E-STU JZ122AAE
3 HPE Aruba Networking 90/70xx SD-Branch Gateway Advanced 5-year Subscription E-STU JZ123AAE
4 HPE Aruba Networking 90/70xx SD-Branch Gateway Advanced 7-year Subscription E-STU R0G54AAE
5 HPE Aruba Networking 90/70xx SD-Branch Gateway Advanced 10-year Subscription E-STU R0G55AAE
11 HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation 1-year Subscription SaaS JZ118AAS
11 HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation 3-year Subscription SaaS JZ119AAS
11 HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation 5-year Subscription SaaS JZ120AAS
11 HPE Aruba Networking 90/70xx SD-Branch Gateway Advanced 1-year Subscription SaaS JZ121AAS
11 HPE Aruba Networking 90/70xx SD-Branch Gateway Advanced 3-year Subscription SaaS JZ122AAS
11 HPE Aruba Networking 90/70xx SD-Branch Gateway Advanced 5-year Subscription SaaS JZ123AAS
QuickSpecs HPE Aruba Networking 9000 Series Branch Gateways
Configuration Information
Page 8
11 HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation Base Capacity 1-year
Subscription SaaS
JZ124AAS
11 HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation Base Capacity 3-year
Subscription SaaS
JZ125AAS
11 HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation Base Capacity 5-year
Subscription SaaS
JZ126AAS
11 HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation 7-year Subscription SaaS R0G52AAS
11 HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation 10-year Subscription SaaS R0G53AAS
11 HPE Aruba Networking 90/70xx SD-Branch Gateway Advanced 7-year Subscription SaaS R0G54AAS
11 HPE Aruba Networking 90/70xx SD-Branch Gateway Advanced 10-year Subscription SaaS R0G55AAS
11 HPE Aruba Networking 90/70xx SD-Branch Gateway Foundation Base Capacity 7-year
Subscription SaaS
R0G56AAS
Gateway License w/ Threat Defense
6 HPE Aruba Networking 90xx SD-Branch Gateway Foundation Base Plus Security 1-year
Subscription E-STU R4D93AAE
7 HPE Aruba Networking 90xx SD-Branch Gateway Foundation Base Plus Security 3-year
Subscription E-STU
R4D94AAE
8 HPE Aruba Networking 90xx SD-Branch Gateway Foundation Base Plus Security 5-year
Subscription E-STU
R4D95AAE
9 HPE Aruba Networking 90xx SD-Branch Gateway Foundation Base Plus Security 7-year
Subscription E-STU
R4D96AAE
10 HPE Aruba Networking 90xx SD-Branch Gateway Foundation Base Plus Security 10-year
Subscription E-STU
R4D97AAE
6 HPE Aruba Networking 90xx SD-Branch Gateway Foundation Plus Security 1-year Subscription E-
STU R4D98AAE
7 HPE Aruba Networking 90xx SD-Branch Gateway Foundation Plus Security 3-year Subscription E-
STU R4D99AAE
8 HPE Aruba Networking 90xx SD-Branch Gateway Foundation Plus Security 5-year Subscription E-
STU R4E00AAE
9 HPE Aruba Networking 90xx SD-Branch Gateway Foundation Plus Security 7-year Subscription E-
STU R4E01AAE
10 HPE Aruba Networking 90xx SD-Branch Gateway Foundation Plus Security 10-year Subscription E-
STU R4E02AAE
6 HPE Aruba Networking 90xx SD-Branch Gateway Advanced Plus Security 1-year Subscription E-
STU R4E03AAE
7 HPE Aruba Networking 90xx SD-Branch Gateway Advanced Plus Security 3-year Subscription E-
STU R4E04AAE
8 HPE Aruba Networking 90xx SD-Branch Gateway Advanced Plus Security 5-year Subscription E-
STU R4E05AAE
9 HPE Aruba Networking 90xx SD-Branch Gateway Advanced Plus Security 7-year Subscription E-
STU R4E06AAE
10 HPE Aruba Networking 90xx SD-Branch Gateway Advanced Plus Security 10-year Subscription E-
STU R4E07AAE
11 HPE Aruba Networking 90xx Central Gateway Foundation Base Plus Security 1-year Subscription
SaaS R4D93AAS
11 HPE Aruba Networking 90xx Central Gateway Foundation Base Plus Security 3-year Subscription
SaaS
R4D94AAS
11 HPE Aruba Networking 90xx Central Gateway Foundation Base Plus Security 5-year Subscription
SaaS
R4D95AAS
11 HPE Aruba Networking 90xx Central Gateway Foundation Base Plus Security 7-year Subscription
SaaS
R4D96AAS
QuickSpecs HPE Aruba Networking 9000 Series Branch Gateways
Configuration Information
Page 9
11 HPE Aruba Networking 90xx Central Gateway Foundation Base Plus Security 10-year Subscription
SaaS
R4D97AAS
11 HPE Aruba Networking 90xx Central Gateway Foundation Plus Security 1-year Subscription SaaS R4D98AAS
11 HPE Aruba Networking 90xx Central Gateway Foundation Plus Security 3-year Subscription SaaS R4D99AAS
11 HPE Aruba Networking 90xx Central Gateway Foundation Plus Security 5-year Subscription SaaS R4E00AAS
11 HPE Aruba Networking 90xx Central Gateway Foundation Plus Security 7-year Subscription SaaS R4E01AAS
11 HPE Aruba Networking 90xx Central Gateway Foundation Plus Security 10-year Subscription SaaS R4E02AAS
11 HPE Aruba Networking 90xx Central Gateway Advanced Plus Security 1-year Subscription SaaS R4E03AAS
11 HPE Aruba Networking 90xx Central Gateway Advanced Plus Security 3-year Subscription SaaS R4E04AAS
11 HPE Aruba Networking 90xx Central Gateway Advanced Plus Security 5-year Subscription SaaS R4E05AAS
11 HPE Aruba Networking 90xx Central Gateway Advanced Plus Security 7-year Subscription SaaS R4E06AAS
11 HPE Aruba Networking 90xx Central Gateway Advanced Plus Security 10-year Subscription SaaS R4E07AAS
Configuration Rules
Rule # Description
Notes: When configuring BTO model, display table of Subscription Type as follows:
o Title = "Select License"
o ChoiceA = "Gateway License"
o ChoiceB = "Gateway License w/ Threat Defense"
If user selects ChoiceA, then display table of subscription term as follows:
o Title "Select Gateway License Term"
o ChoiceA1 = "1-Year"
o ChoiceA2 = "3-Year"
o ChoiceA3 = "5-Year"
o ChoiceA4 = "7-Year"
o ChoiceA5 = "10-Year"
If user selects ChoiceB, then display table of subscription term as follows:
o Title = "Select Gateway License Term w/ Threat Defense"
o ChoiceB1 = "1-Year"
o ChoiceB2 = "3-Year"
o ChoiceB3 = "5-Year"
o ChoiceB4 = "7-Year"
o ChoiceB5 = "10-Year"
1 If ChoiceA1 is selected, then present this SKU as a selectable option
2 If ChoiceA2 is selected, then present this SKU as a selectable option
3 If ChoiceA3 is selected, then present this SKU as a selectable option
4 If ChoiceA4 is selected, then present this SKU as a selectable option
5 If ChoiceA5 is selected, then present this SKU as a selectable option
6 If ChoiceB1 is selected, then present this SKU as a selectable option
7 If ChoiceB2 is selected, then present this SKU as a selectable option
8 If ChoiceB3 is selected, then present this SKU as a selectable option
9 If ChoiceB4 is selected, then present this SKU as a selectable option
10 If ChoiceB5 is selected, then present this SKU as a selectable option
11 For IRIS reference only. No action required for OCX and Clic
HPE Aruba Networking Central
Cloud Web Policy Enforcement / IAP
1 HPE Aruba Networking SUB1-WE-IAP-1 Cloud Web Policy Enforcement 1 Instant AP 1y
Subscription E-STU
JW455AAE
1 HPE Aruba Networking SUB3-WE-IAP-1 Cloud Web Policy Enforcement 1 Instant AP 3y
Subscription E-STU
JW456AAE
QuickSpecs HPE Aruba Networking 9000 Series Branch Gateways
Configuration Information
Page 10
1 HPE Aruba Networking SUB5-WE-IAP-1 Cloud Web Policy Enforcement 1 Instant AP 5y
Subscription E-STU
JW457AAE
Notes: Cloud web policy enforcement for 1 AP (NOT required for Access Points with Central
Subscription)
Cloud Services / WLAN Gateway Subscriptions
2 HPE Aruba Networking 90/70xx Gateway WLAN Advanced 1-year Subscription E-STU S0U81AAE
2 HPE Aruba Networking 90/70xx Gateway WLAN Advanced 3-year Subscription E-STU S0U82AAE
2 HPE Aruba Networking 90/70xx Gateway WLAN Advanced 5-year Subscription E-STU S0U83AAE
2 HPE Aruba Networking 90/70xx Gateway WLAN Advanced 7-year Subscription E-STU S0U84AAE
2 HPE Aruba Networking 90/70xx Gateway WLAN Advanced 10-year Subscription E-STU S0U85AAE
Cloud Services / WLAN Gateway Foundation Subscriptions
2 HPE Aruba Networking Central WLAN Gateway Foundation 1 year Subscription SaaS R4G90AAS
2 HPE Aruba Networking Central WLAN Gateway Foundation 3 year Subscription SaaS R4G91AAS
2 HPE Aruba Networking Central WLAN Gateway Foundation 5 year Subscription SaaS R4G92AAS
2 HPE Aruba Networking Central WLAN Gateway Foundation 7 year Subscription SaaS R4G93AAS
2 HPE Aruba Networking Central WLAN Gateway Foundation 10 year Subscription SaaS R4G94AAS
On-Prem Services / Gateway and Controller Foundation Subscriptions
3 HPE Aruba Networking Central On-Premises Campus Gateway Ctr Foundation 1 yr Subscription E-
STU
R6U58AAE
3 HPE Aruba Networking Central On-Premises Campus Gateway Ctr Foundation 3 yr Subscription E-
STU
R6U59AAE
3 HPE Aruba Networking Central On-Premises Campus Gateway Ctr Foundation 5 yr Subscription E-
STU
R6U60AAE
3 HPE Aruba Networking Central On-Premises Campus Gateway Ctr Foundation 7 yr Subscription E-
STU
R6U61AAE
3 HPE Aruba Networking Central On-Premises Campus Gateway Ctr Foundation 10 yr Subscription
E-STU
R6U62AAE
On-Prem Services / Gateway and Controller Foundation Government Subscriptions
3 HPE Aruba Networking COP Controller Foundation 1-year Government Subscription E-STU S1P61AAE
3 HPE Aruba Networking COP Controller Foundation 3-year Government Subscription E-STU S1P62AAE
3 HPE Aruba Networking COP Controller Foundation 5-year Government Subscription E-STU S1P63AAE
3 HPE Aruba Networking COP Controller Foundation 7-year Government Subscription E-STU S1P64AAE
3 HPE Aruba Networking COP Controller Foundation 10-year Government Subscription E-STU S1P65AAE
Configuration Rules
Rule # Description SKU
1 For use with iQuote. Do not model in OCx as it is already visible in the HPE Aruba Networking
Catalog under Network Management.
2 Add the Central Cloud SKUs to the HPE Aruba Networking Catalog as Standalone:
HPE Aruba Networking > Network Management > Central > Cloud Services
3 Add the Central On-Prem SKUs to the HPE Aruba Networking Catalog as Standalone:
HPE Aruba Networking > Network Management > Central > On-Prem Services
Mobility Controller Licenses (Alternate)
Remarks Description SKU
HPE Aruba Networking LIC-AP Controller per AP Capacity License E-LTU JW472AAE
HPE Aruba Networking LIC-PEF Controller Policy Enforcement Firewall Per AP License E-LTU JW473AAE
HPE Aruba Networking LIC-RFP Controller RFProtect Per AP License E-LTU JW474AAE
HPE Aruba Networking LIC-ENT Enterprise (LIC-AP LIC-PEF LIC-RFP and LIC-AW) License Bundle
E-LTU
JW471AAE
QuickSpecs HPE Aruba Networking 9000 Series Branch Gateways
Configuration Information
Page 11
HPE Aruba Networking LIC-ACR Controller Advanced Cryptography 1 Session License E-LTU Q9B90AAE
HPE Aruba Networking Controller Web Content Classification 1-year Subscription E-STU JY028AAE
HPE Aruba Networking Controller Web Content Classification 3-year Subscription E-STU JY029AAE
HPE Aruba Networking Controller Web Content Classification 5-year Subscription E-STU JY030AAE
HPE Aruba Networking Controller Web Content Classification 7-year Subscription E-STU JY031AAE
HPE Aruba Networking Controller Web Content Classification 10-year Subscription E-STU JY032AAE
Notes: A single HPE Aruba Networking 9004 Branch Gateway cannot be simultaneously used for
SD-WAN and Mobility Controller functionality.
For each AP attached to the gateway, the minimal configuration is 1 x LIC-AP per AP.
LIC-AW is a device license for the AirWave network management system.
For dynamic segmentation, the per-AP license count must equal the sum of APs and
switches that are tunneling traffic. For virtual switch stacks, one AP license will be consumed
per stack.
LIC-VIA license is a per-user session license that can be transferred from one
gateway/controller to another.
LIC-VIA supports centralized licensing and can be managed by Mobility Master or a master
controller in an HPE Aruba Networking AOS 8 deployment.
