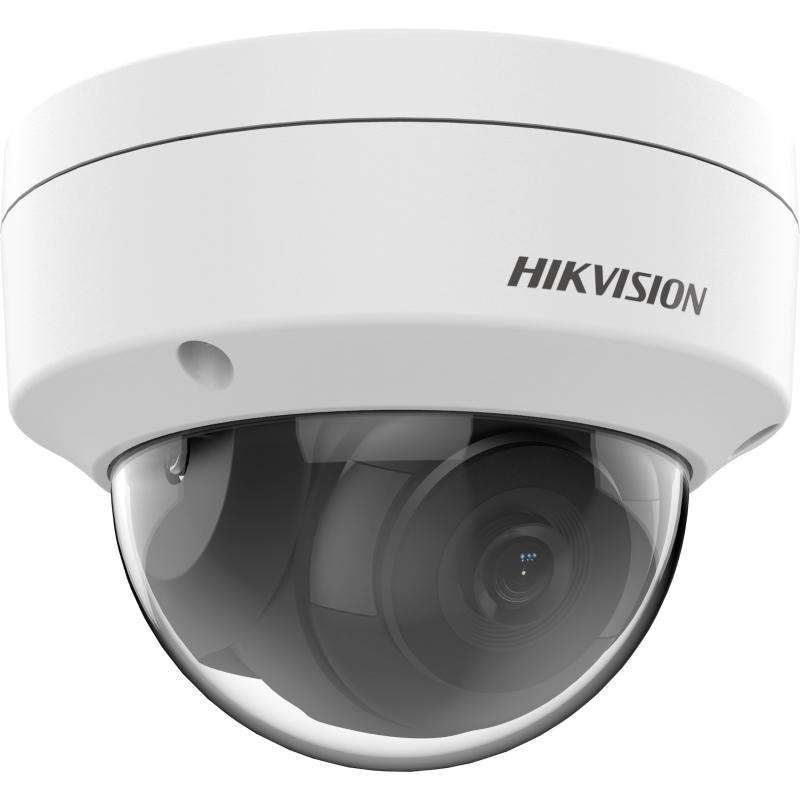

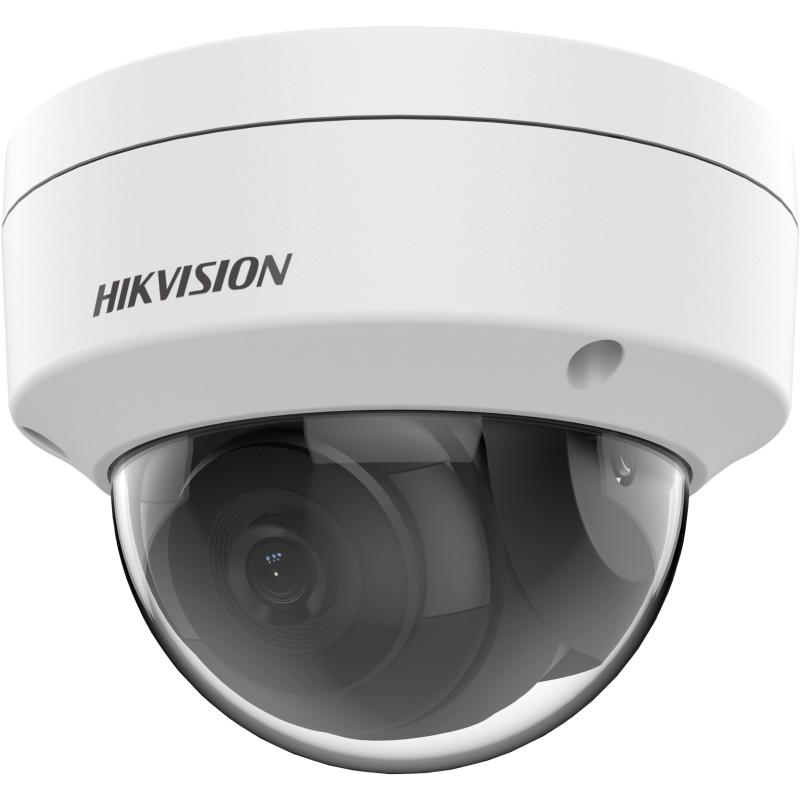

DS-2CD1123G2-I 2 MP MD 2.0 Fixed Dome Network Camera - Nanjing Xiaoli Science-networks, servers, audio and video device, and telecommunications equipment sale.

- Camera
- Image Sensor1/2.9" Progressive Scan CMOS
- Max. Resolution1920 × 1080
- Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°
- Lens
- Lens TypeFixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
  2.8 mm, horizontal FOV 104°, vertical FOV 58°, diagonal FOV 123°

  4 mm, horizontal FOV 81°, vertical FOV 43°, diagonal FOV 96°
- Lens MountM12
- Iris TypeFixed
- ApertureF2.0
- DORI
- DORI
  2.8 mm, D: 42 m, O: 16 m, R: 8 m, I: 4 m

  4 mm, D: 57 m, O: 22 m, R: 11 m, I: 5 m
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 30 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
- Main Stream
  50 Hz: 25 fps (1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream
  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)
- Video Compression
  Main stream: H.265+/H.265/H.264+/H.264

  Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR/VBR
- Region Of Interest (ROI)1 fixed region for main stream
- Network
- SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile T), ISAPI, SDK
- ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
- User/Host
  Up to 32 users

  3 user levels: administrator, operator, and user
- ClientiVMS-4200, Hik-Connect
- Web Browser
  Plug-in required live view: IE 10, IE 11

  Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Wide Dynamic Range (WDR)Digital WDR
- SNR≥ 52 dB
- Day/Night SwitchDay, Night, Auto, Schedule
- Image EnhancementBLC, HLC, 3D DNR
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
- Privacy Mask4 programmable polygon privacy masks
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- Event
- Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
- LinkageUpload to FTP, send email, notify surveillance center, trigger capture
- General
- Power
  12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
- MaterialMetal & Plastic
- DimensionØ110.8 mm × 84.7 mm (Ø4.4" × 3.3")
- Package Dimension134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
- WeightApprox. 520 g (1.1 lb.)
- With Package WeightApprox. 720 g (1.6 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- LanguageEnglish, Ukrainian
- General FunctionHeartbeat, anti-flicker, mirror, password protection, password reset via email
- Approval
- EMC
  FCC: 47 CFR Part 15, Subpart B

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014

  RCM: AS/NZS CISPR 32: 2015

  IC: ICES-003: Issue 7

  KC: KN32: 2015, KN35: 2015
- Safety
  UL: UL 62368-1

  CB: IEC 62368-1: 2014+A11

  CE-LVD: EN 62368-1: 2014/A11: 2017

  BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
- Environment
  CE-RoHS: 2011/65/EU

  WEEE: 2012/19/EU

  Reach: Regulation (EC) No 1907/2006
- ProtectionIP67: IEC 60529-2013, IK10: IEC 62262: 2002
